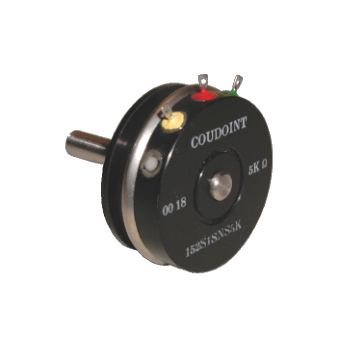

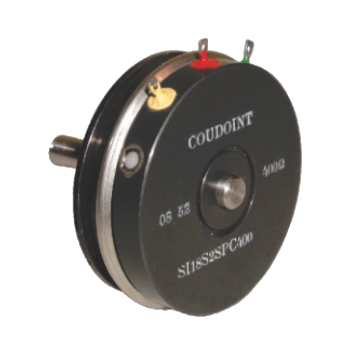

Our potentiometers are wire wound potentiometers with high accuracy (linearity up to ± 0,05 %), high reliability and a long rotational life.
They are used in a wide range of industrial applications and in railway applications.
Each potentiometer is supplied at the required ohmic value in the range of feasible values.
Multiple-units potentiometers are achieved by combining several units.

Description

These wire-wound potentiometers are constructed with:

  • high-accuracy, low-temperature coefficient windings

  • a modular housing of light alloy supporting a stainless steel shaft with 2 precision roller bearings (except for the “Economy” class)

  • critical parts (slider, slip ring) made in precious metal alloys

  • a specific wiper technology with a double triangular arm, and redundant internal connections on some models for maximum reliability

  • numerous options: special variation laws, electrical and/or mechanical travel, intermediary taps, terminal wires, shaft design, housing, etc.

Series and models

Standard models

Two different sizes provide two levels of power rating: size 15 (3 watts), size 18 (6 watts).
The four classes differ in the accuracy level and the ability to withstand environmental conditions:

“PRECISION” Class

linearity ± 0.1% to ± 0.05%
– 55 to + 155 °C

“HEAVY INDUSTRY” Class

linearity ± 0.5% to ± 0.1%
– 25 to + 125 °C

“LIGHT INDUSTRY” Class

linearity ± 0.5%
– 10 to + 85 °C

“ECONOMY” Class

linearity ± 1%
– 10 to + 85 °C

Size 15

3 watt
200 Ω to 50 kΩ

PR-15
linearity ± 0,1%
152
linearity ± 0,5%
SI-15
linearity ± 1%
SI-15T SI-15TC
linearity ± 1%
Size 18

6 watt
200 Ω to 108 kΩ

PR-18
linearity ± 0,1%
182 8018
linearity ± 0,5%
SI-18
linearity ± 1%

Non-standard products

Des exemples de nos réalisations “sur-mesure” ainsi que des anciens produits remplaçables sont présentés sur ce site et dans la notice produit.

Examples of custom designs as well as our former [replaceable] products are shown on this website and in the technical documentation.

Download the technical documentation on Precision Potentiometers :
Download
